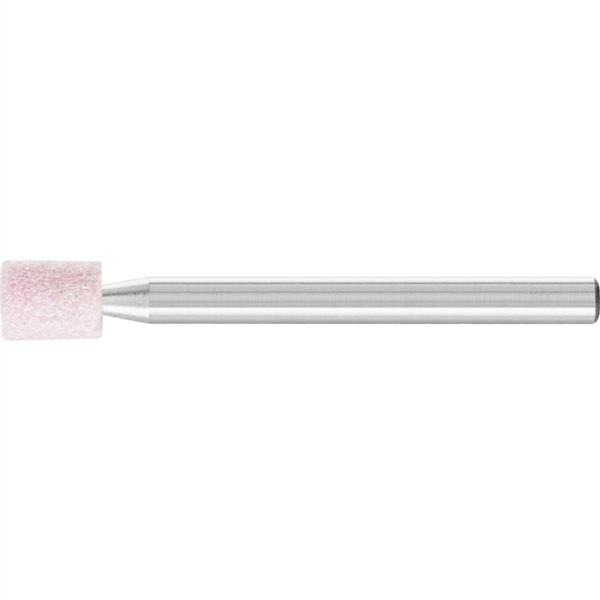

PFERD Vitrified Mounted Point W152 S3 AR 100 O5V

Description

The STEEL EDGE type is particularly well-suited to edge grinding and deburring work on steel and cast steel components.

Its applications also include grinding of chamfers in preparation for weld seams and grinding of contours.

Series A mounted points are generally used on larger components. Due to the special shapes, it is possible to grind in a variety of contours.

The applications range from grinding out slits and grooves in hard-to-reach areas to machining bores and small holes as well as smoothing.

Technical information

Dia. shank - 3 mm
Grit size - 100
Length, shank - 30

Advantages

• Long tool life and low tool wear due to hard, dimensionally stable bond.
• Economical to use due to the high edge stability even on low-speed tool drives.
• Particularly well suited to work on edges.

Recommendations for use

• STEEL EDGE mounted points perform best at a cutting speed of 25 to 40 m/s.

Safety notes

• The maximum permitted rotational speed relates to the unsupported shank length of 10 mm.

Materials that can be worked

• Cast steel
• Steel

Applications

• Deburring
• Finishing
• Grinding out
• Grouting
• Leveling
• Surface work
• Working on edges (chamfering, rounding)
• Work on weld seams

Drive types

• Flexible shaft drive
• Straight grinder
